This is an awesome large sized RGB LED Matrix with superbright and beautiful performance. It has 64 5mm square-dots.

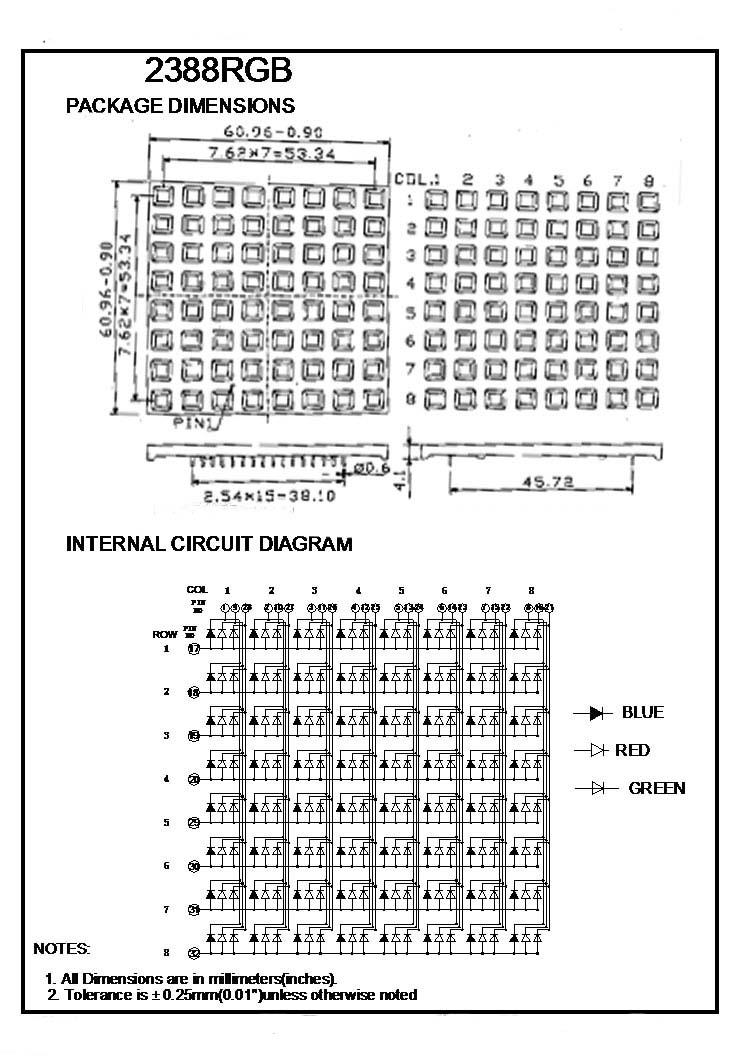

Specification
- Emitted color : RGB
- LED Color : Red-Green-Blue
- Matrix Type : Common Anode
- Dot Size : 5.0mm
- Pixel Array : 8×8
- Luminous Intensity : 40mcd
- Package Dimension : 60mm×60mm
- Reverse Voltage(Max) : 5V
- Forward Current(Max) : 20mA
- Peak Forward Current(Max) : 120mA
- Power Dissipation(Max) : 300mW
- Operating Temperature(Max) : -40~+80℃
- Storage Temperature(Max) : -40~+80℃
- Lead Solder Temperature(Max) : 260℃ for 5 seconds
